Planning

This guide walks through a straightforward DIY floating dock build based on a real example: a 12’ x 12’ main platform with a 16’ walkway. The same principles apply to most DIY projects.

What you’ll do in this section

Choose your dock system and materials
Design a modular layout (walkway + platform)
Estimate total dock weight (dead load + live load)
Select floats based on freeboard and buoyancy

Quick reminder: If you’d like to talk to a real person at any point, call 479-222-1413, chat, or email sales@dock-shop.com.

Quick start checklist

Confirm your maximum water depth at the end of the dock
Decide your layout and module sizes
Choose a target freeboard (most DIY builds aim for 6–8” unloaded)
Estimate live load realistically (people + furniture + gear)

Before you start cutting or drilling, make sure you have the basics on hand. This checklist is intentionally general so it works for most DIY floating dock builds.

Tools (typical DIY setup)

[ ] Tape measure, pencil/marker, carpenter’s square
[ ] Circular saw or mitre saw (plus spare blades)
[ ] Drill/driver + spare battery
[ ] Drill bits for pilot holes and through-bolts (sizes to match your hardware)
[ ] Socket set / spanners for carriage bolts and nuts
[ ] Clamps (helpful for keeping framing square during assembly)
[ ] Level (for posts, framing checks, and shoreline setup)
[ ] Safety gear: gloves, eye protection, hearing protection

Materials (high level)

[ ] Framing lumber (commonly pressure treated 2x6)
[ ] Decking boards (pressure treated 5/4 or your chosen decking)
[ ] Dock floats sized for each module

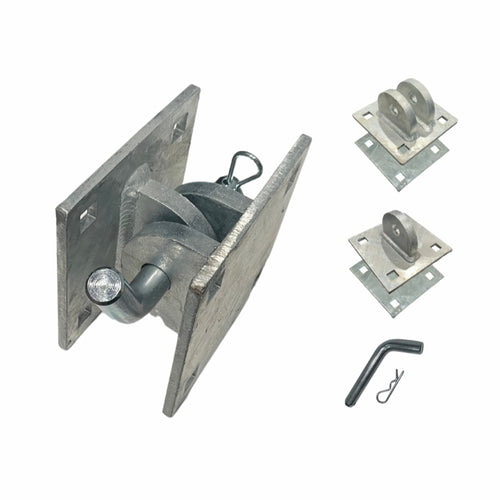

[ ] Connection hardware (corner connectors and/or connector sets)
[ ] Fasteners: carriage bolt sets, angle brackets, backer plates
[ ] Float attachment hardware (bolts/lag bolts + washers as required)

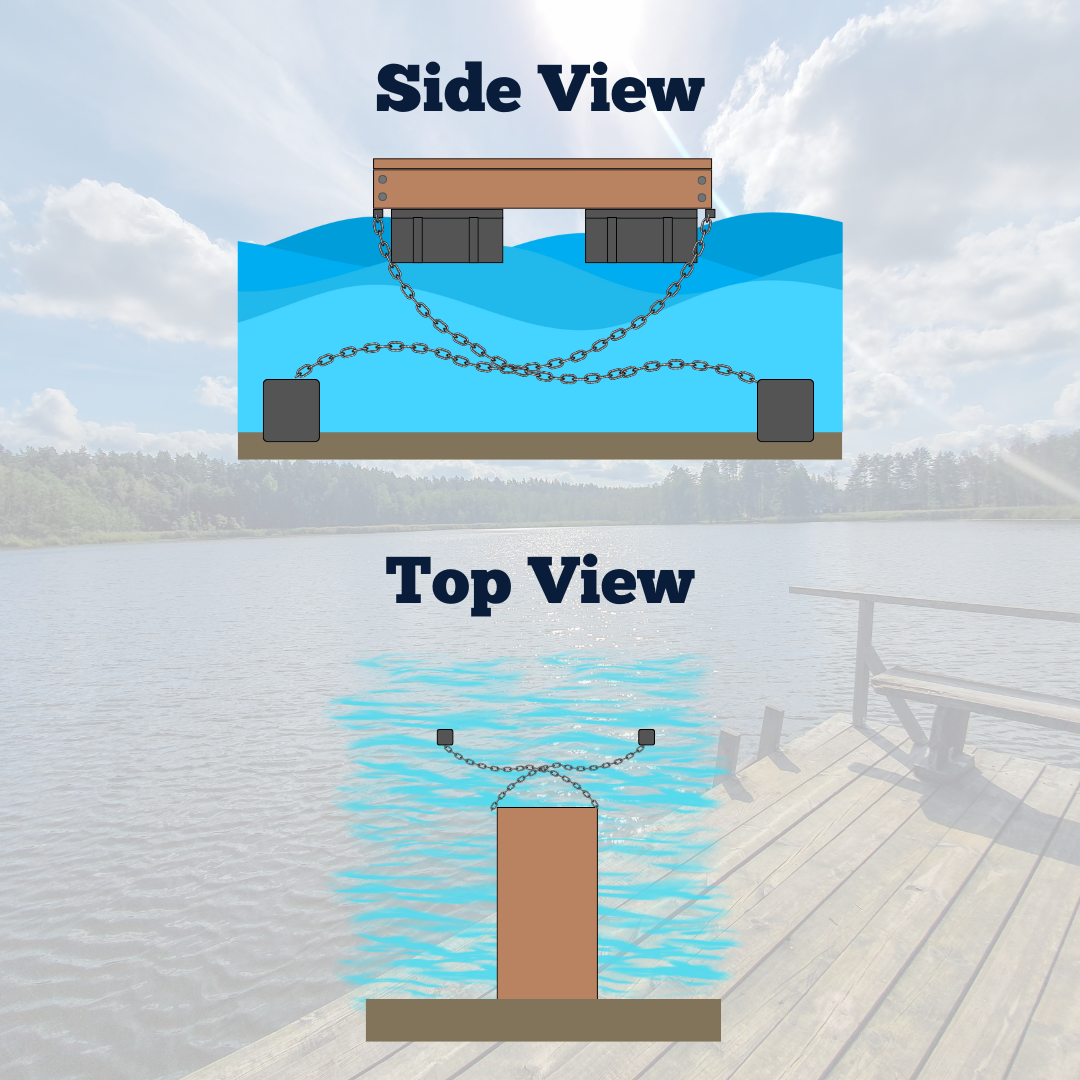

[ ] Anchoring gear (concrete blocks/buckets, rope/chain, shoreline posts, etc.)

Tip: Organise your hardware by module before you begin (Walkway #1, Walkway #2, Platform). It makes assembly and weight checks much easier.

Set yourself up for launch day

Put all connection pins, safety clips, and the tools needed to install them in one bucket or tote. Once modules are floating, small missing parts cause big delays.

Common mistakes to avoid

Starting the build without the correct drill bit sizes for your bolts
Mixing hardware for different modules and losing track of quantities
Forgetting float attachment washers / clips / pins until you’re already at the water

There are multiple types of docks (stationary and floating) and many systems (wood, aluminium, steel truss and more). Each has pros and cons and deserves careful consideration.

For most DIY projects, wood is the preferred starting point. Pressure treated lumber is widely available, cost effective, and straightforward to work with. Aluminium and steel systems can be high quality and durable, but are often more expensive and typically require more precision.

The remainder of this guide assumes a wooden floating dock system, though many principles translate to other systems.

Related products and collections

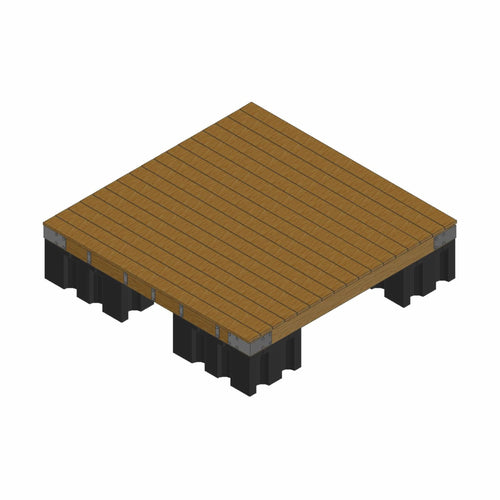

DIY Dock Kits

Collection

Eagle Float Dock Floats

Collection

When a floating dock makes sense

Water levels vary throughout the season
You want a stable, level platform as conditions change
You want modular sections that can be adjusted or expanded later

Common mistakes to avoid

Choosing floating vs stationary without thinking about seasonal water swing
Assuming metal is automatically simpler for DIY

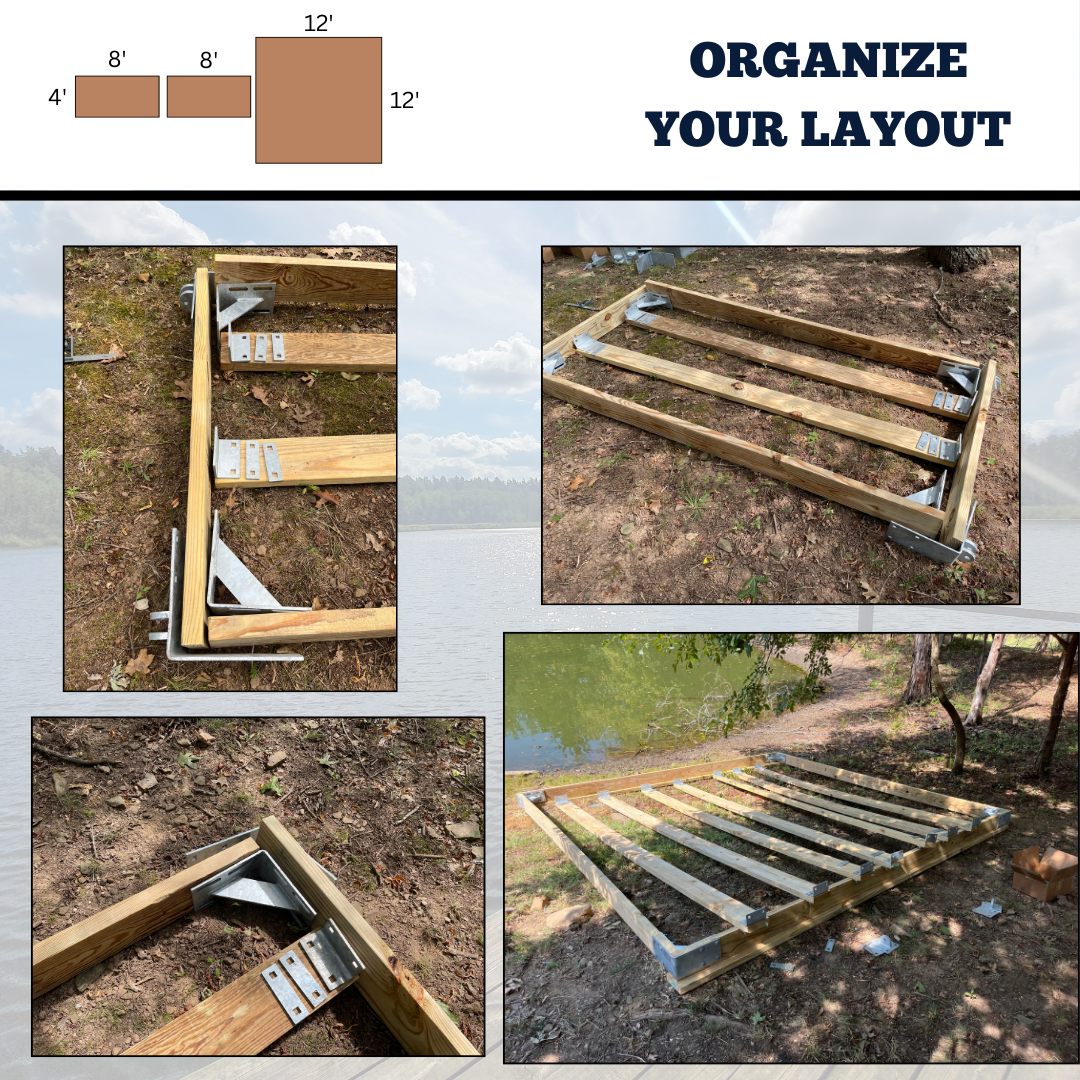

Start by deciding how big your dock needs to be. The dock’s overall dimensions drive your weight calculations, float selection, and cost, so confirm your dimensions early.

Why modular design is best for DIY

Simplifies the overall project by breaking it into distinct sections
Improves adaptability as water levels change
Makes future changes, repairs, or expansions much easier

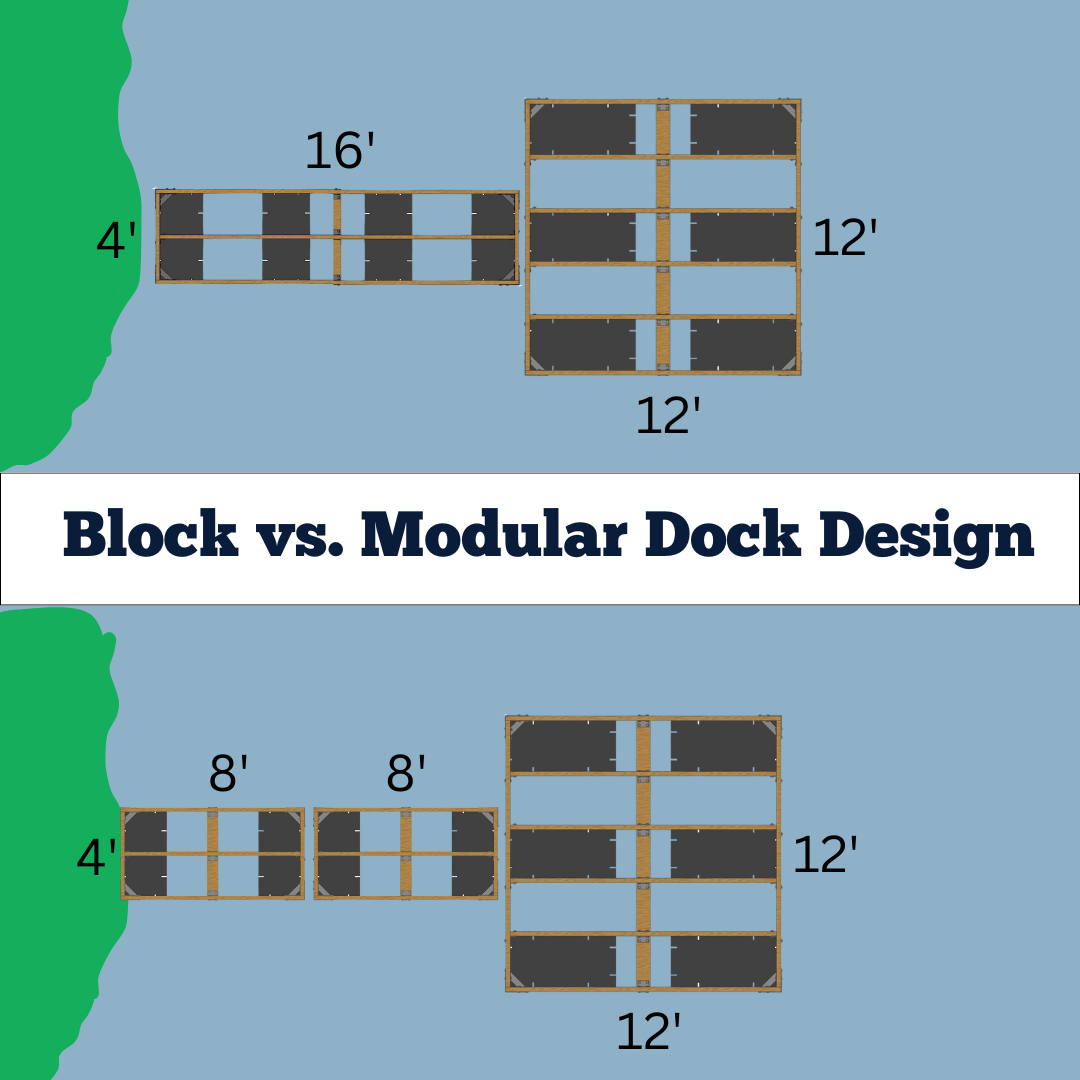

Example layout: a 16’ walkway leading to a 12’ x 12’ platform can be built as two 8’ walkway modules plus one 12’ x 12’ module. This helps manage incline changes near the shoreline while keeping the main sections level on the water.

The walkway

How long does it need to be to reach an anchoring point above the high water line?
How much does the water level change, and how steep will the walkway become at low water?
Can it be split into modules (for example, 16’ as two 8’ sections)?

In our example build: two 4’ x 8’ walkway sections create the 16’ walkway.

The main platform

What is the primary purpose (swimming, fishing, boat tie-up, relaxing)?
How many people and what equipment do you expect?
What shape best suits the end goal (square, rectangle, T, L)?

In our example build: a 12’ x 12’ platform designed to comfortably accommodate 5–8 people.

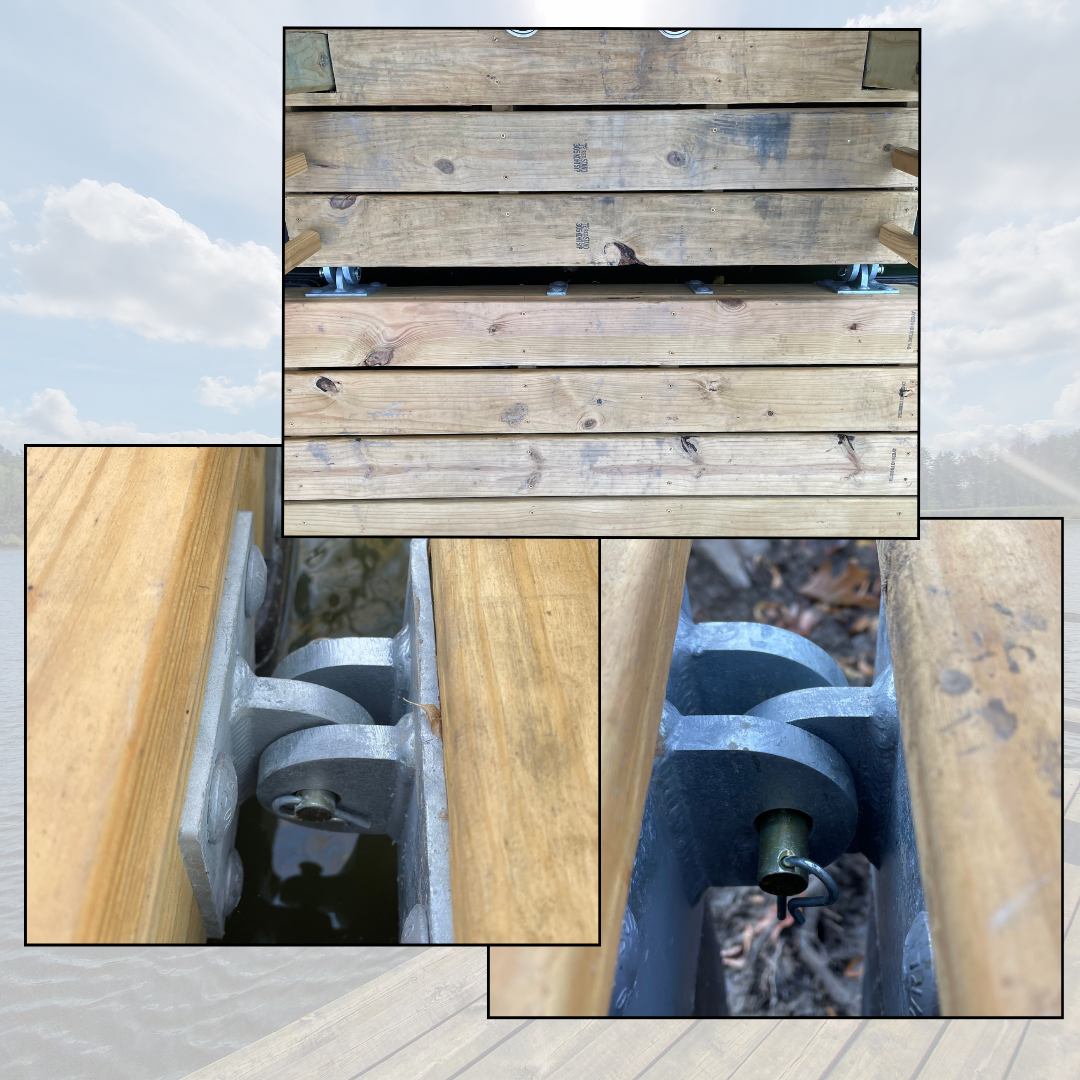

Connecting sections

Plan how modules will connect using dedicated connection pieces and/or male/female corner connectors. Most builds use a combination.

Design rule that saves headaches

Keep connection points in mind when placing joists. Joists and connection hardware both use backer plates, so avoid planning a joist intersection in the exact spot you need a connection point.

Common mistakes to avoid

Building a walkway as one long section that becomes awkward as water levels change
Not planning connection points until after framing is cut
Designing a layout that cannot be moved or launched safely

Joist spacing

Most docks use centres of 16” to 24”. The correct spacing depends on your decking material. Many pressure treated 5/4 boards recommend 16” centres, while some composite options can support 24”.

Lumber size

Most DIY docks use pressure treated 2x6 lumber, which is strong enough for most DIY use cases. If you choose other materials, account for strength, weight, and nominal dimensions.

Consistent framing

If using floats attached to the bottom of framing, keep external frame and internal joists/trusses the same height for easier mounting and a cleaner build.

Important note about float dimensions

Dock floats can shrink during manufacturing. A “2’ x 4’” float may measure slightly smaller. For that reason, always wait to cut final framing dimensions until your floats are on site so you can confirm real measurements and ensure proper contact.

Common mistakes to avoid

Cutting framing to nominal float dimensions before floats arrive
Using joist spacing that does not match decking requirements

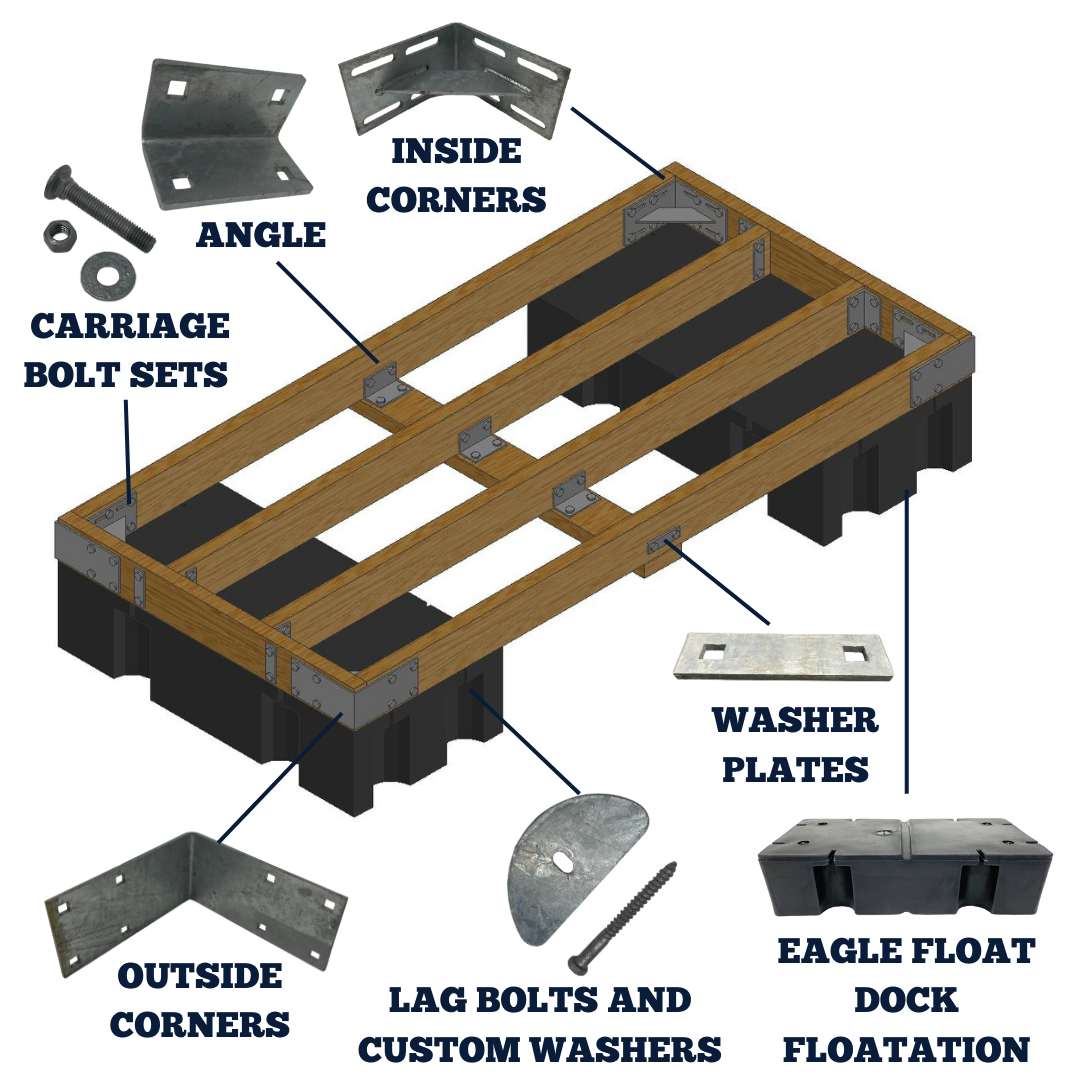

Once your design is set, account for all hardware required by your system. Accurate weight is crucial for float selection, so include hardware in your total dock weight.

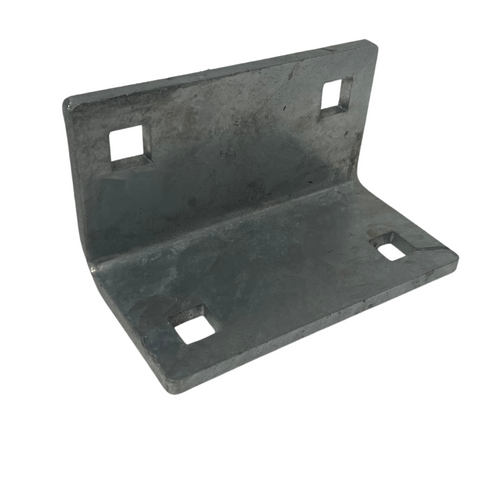

Each corner requires an inside and outside angle bracket, bolted together with 8 total carriage bolt sets.
Each joist-to-frame intersection (and connection points between stringers and joists or frame) typically requires one angle bracket and two backer plates, bolted together using 4 carriage bolt sets.
Float attachment should use lag bolts and custom washers at as many points as possible for stability, with a minimum of 4 attachment points per float.

Related products and collections

Hardware planning shortcut

As you list hardware, organise it by module (walkway section 1, walkway section 2, platform). You will use this same structure later for weight and buoyancy checks.

Common mistakes to avoid

Forgetting to include hardware weight in buoyancy planning
Under-attaching floats (too few attachment points)

Next, estimate the total weight of your dock system including framing, decking, hardware, and anything permanently attached.

You also need to account for live load: the weight the dock must support that is not attached, such as people, furniture, animals, accessories, PWC, and more.

Planning rule: If you are unsure, plan for more live load, not less. A little extra buoyancy is usually more practical than limited capacity.

Keep your assumptions visible

Document your assumptions (average person weight, gear weight, furniture, accessories). It makes float selection simpler and makes it easier to adjust later if your use case changes.

Common mistakes to avoid

Only calculating lumber weight and skipping decking and hardware
Designing to “max buoyancy” rather than leaving freeboard at target load

Note: This is an estimated planning example. Always verify actual weights during your build to ensure safe buoyancy.

Planning lumber weights (estimates)

Use this format for your own build: calculate per module, then total.

Total lumber weight

Average lumber weights (estimates)	Value
2x6 pressure treated lumber	2.25 lbs / linear ft
5/4x6 pressure treated decking	1.75 lbs / linear ft

Module	Framing (lbs)	Decking (lbs)	Total (lbs)
Walkway section #1 (4’ x 8’)	99	119	218
Walkway section #2 (4’ x 8’)	99	119	218
Platform (12’ x 12’)	297	525	822
Total	495	763	1,258

Show lumber calculations (optional)

Walkway section (4’ x 8’) example

Framing: (4 × 2x6x8) + (3 × 2x6x4) = 44 linear ft → 44 × 2.25 = 99 lbs
Decking: (17 × 5/4x6x4) = 68 linear ft → 68 × 1.75 = 119 lbs
Total walkway section: 99 + 119 = 218 lbs

Platform (12’ x 12’) example

Framing/joists: (11 × 2x6x12) = 132 linear ft → 132 × 2.25 = 297 lbs
Decking: (25 × 5/4x6x12) = 300 linear ft → 300 × 1.75 = 525 lbs
Total platform: 297 + 525 = 822 lbs

Total hardware weight

Hardware weight varies by system and build. Use your hardware chart as a reference and total hardware per module.

Module	Total hardware (lbs)
Walkway section #1	95.2
Walkway section #2	95.2
Platform	179.5
Total	370

Walkway section example (95.2 lbs)

4 inside corners @ 6 lb = 24 lbs
4 outside corners @ 6 lb = 24 lbs
8 angle brackets @ 1.6 lb = 12.8 lbs

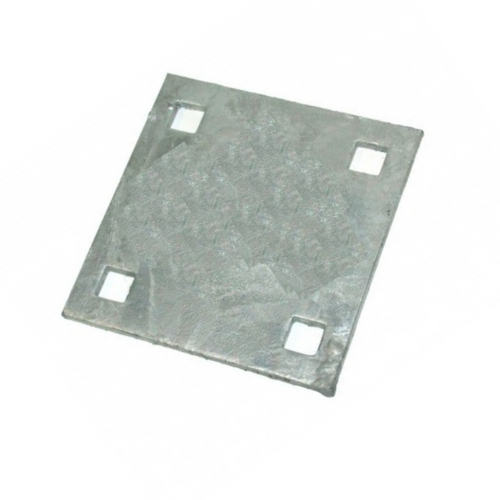

16 backer plates @ 0.46 lb = 7.4 lbs

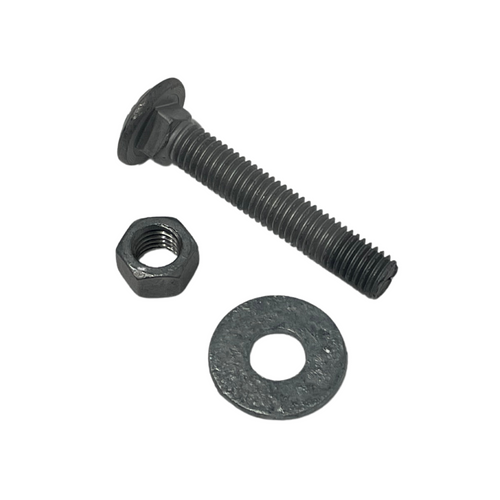

84 carriage bolt sets @ 0.25 lb = 21 lbs
12 attachment bolts & washers @ 0.5 lb = 6 lbs
Total: 95.2 lbs

Platform example (179.5 lbs)

4 inside corners @ 6 lb = 24 lbs
4 outside corners @ 6 lb = 24 lbs
26 angle brackets @ 1.6 lb = 41.6 lbs
52 backer plates @ 0.46 lb = 23.9 lbs
216 carriage bolt sets @ 0.25 lb = 54 lbs
24 attachment bolts & washers @ 0.5 lb = 12 lbs
Total: 179.5 lbs

Planning note: This is an estimated planning example only. Always verify actual weights during your build to ensure safe buoyancy and construction.

Common mistakes to avoid

Duplicating module labels (make sure each module is clearly named)
Mixing linear feet and board counts without showing conversions

With your total dock weight estimated, you can choose floats. Ask three questions:

How much float freeboard do you want with no live load?
How much live load do you want your dock to support?
What float dimensions make sense for your dock modules?

Float freeboard

Float freeboard is the distance from the waterline to the top of the dock float. Less freeboard means less remaining capacity for live load, but too much freeboard can feel less stable.

Most active DIY docks target 6–8” of freeboard with no live load. Low traffic docks may target around 4”.

Live load

Live load includes people, furniture, accessories and movable equipment. Plan to have at least a few inches of freeboard remaining at your target live load. Avoid planning to the float’s max buoyancy.

Float dimensions

Choose floats that allow at least 4 attachment points per float for stability.
Space floats symmetrically for even weight distribution.
Choose lengths and widths that fit your module dimensions cleanly.
If an area will have heavier load (PWC, permanent features), consider larger floats in that area.

Related products and collections

Eagle Float Dock Floats

Collection

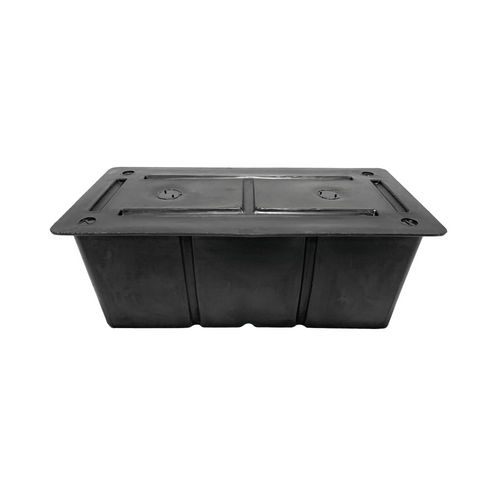

Eagle Float | Dock Float | Flange Style | 2' x 3' (24" x 36")

$120.98

How to “sanity check” your float plan

Do the buoyancy maths per module, not just for the whole dock. Your main platform usually needs the most support, while walkway sections often have lower live loads.

Common mistakes to avoid

Choosing floats based on max buoyancy only, without checking freeboard at target load
Using float sizes that make symmetrical spacing difficult

Example: The main platform has 822 lbs of lumber and 180 lbs of hardware, total 902 lbs.

Plan for 5 floats (one on each corner, one in the centre). That distributes 902 ÷ 5 = 180 lbs per float before live load.

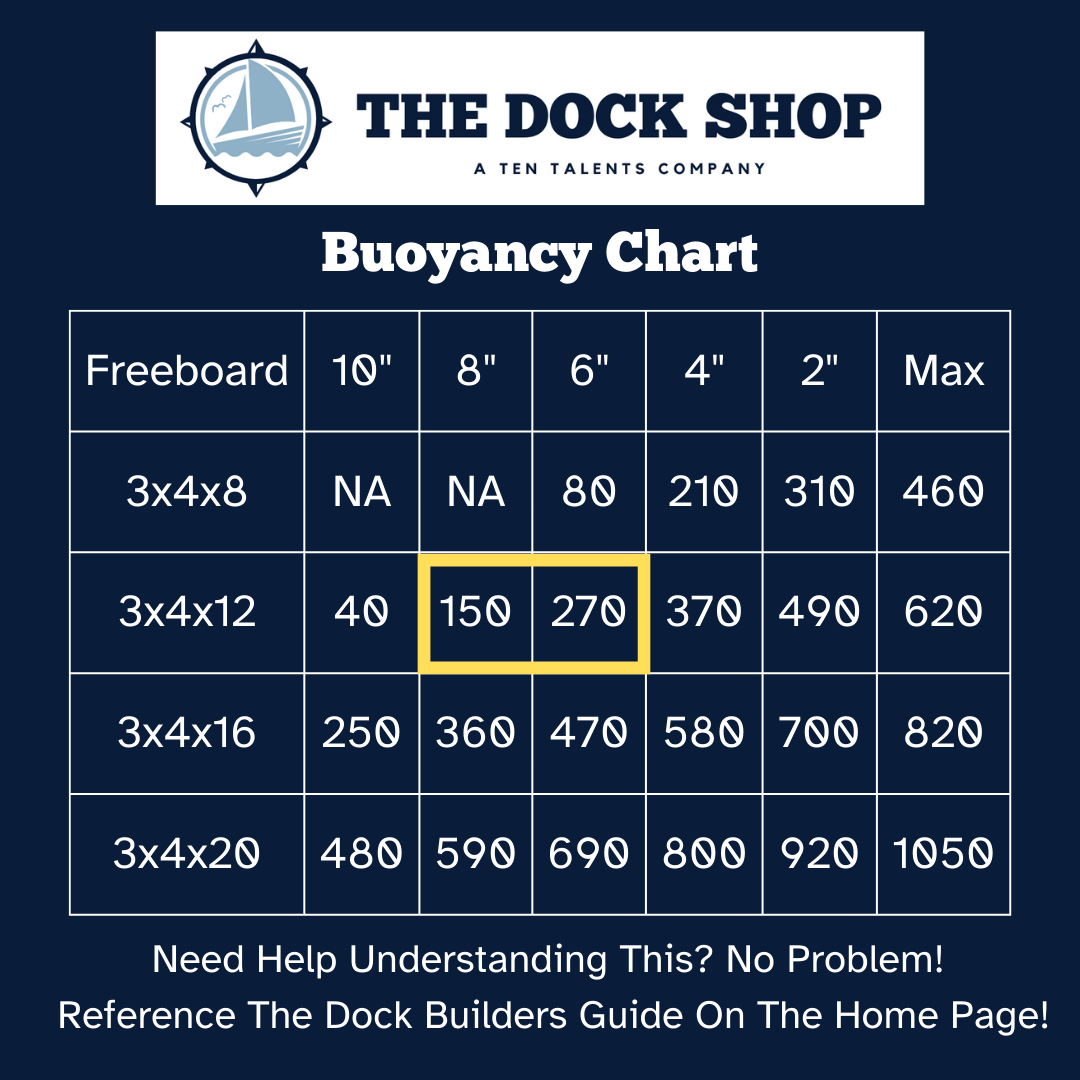

Using buoyancy charts, choose a float depth that gives your target freeboard at around 180 lbs per float. If you target ~6” freeboard and your chart indicates ~7” unloaded, that is generally a good outcome because it leaves more practical capacity for live load.

Now check live load. If your target live load is 1,580 lbs and dock weight is 902 lbs, the total is 2,482 lbs. Across 5 floats that is 496 lbs per float. Confirm on the chart that you still have a few inches of freeboard at that load.

Repeat this process for your walkway modules. Walkways usually experience lower live loads than the main platform.

Buoyancy charting can be found in the master sheet, and individual float product pages often include summarised charts.

Feeling stuck?

If buoyancy planning feels confusing, contact Dock Shop via phone, email, or chat. A quick conversation can save hours of trial and error.

Common mistakes to avoid

Skipping the “loaded” check and only checking unloaded freeboard
Forgetting to include hardware and decking in module weight

Assembly

In this section you’ll assemble each dock module. Most builders find this easiest to do on shore where you can measure, drill, and fasten safely.

Confirm parts and measurements
Assemble framing and joists
Attach floats securely

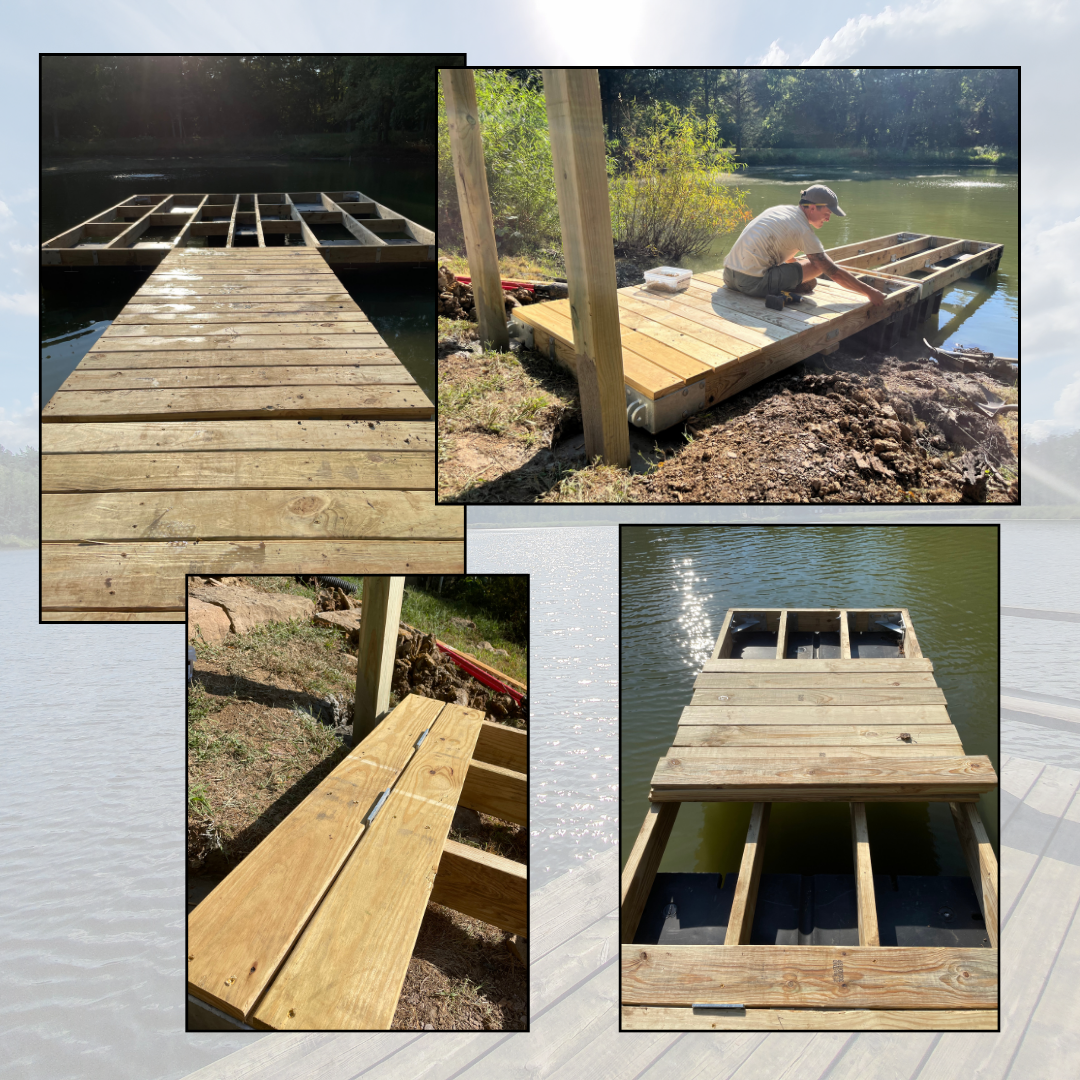

Add decking (before launch or after floating, depending on weight and manpower)

Work module-by-module

Finish one module at a time (walkway section 1, walkway section 2, platform). It keeps parts organised and makes launch day much simpler.

Common mistakes to avoid

Mixing parts across modules and losing track of quantities
Rushing to final assembly before dry-fitting the layout

Building a dock involves many pieces. Organisation and careful planning reduce mistakes.

Now that floats are on site, cut framing lumber to final size.
Floats can shrink during manufacturing, so your frame may need to be slightly smaller than nominal dimensions.
Dry-fit your module layout without fasteners first to confirm accuracy.
Double-check quantities and placement of hardware before drilling.

This step prevents rework

Dry-fitting feels slower upfront, but it helps catch issues like joists clashing with connection points or missing hardware before you’ve drilled dozens of holes.

Common mistakes to avoid

Cutting lumber before floats arrive
Skipping dry-fit and discovering problems after drilling

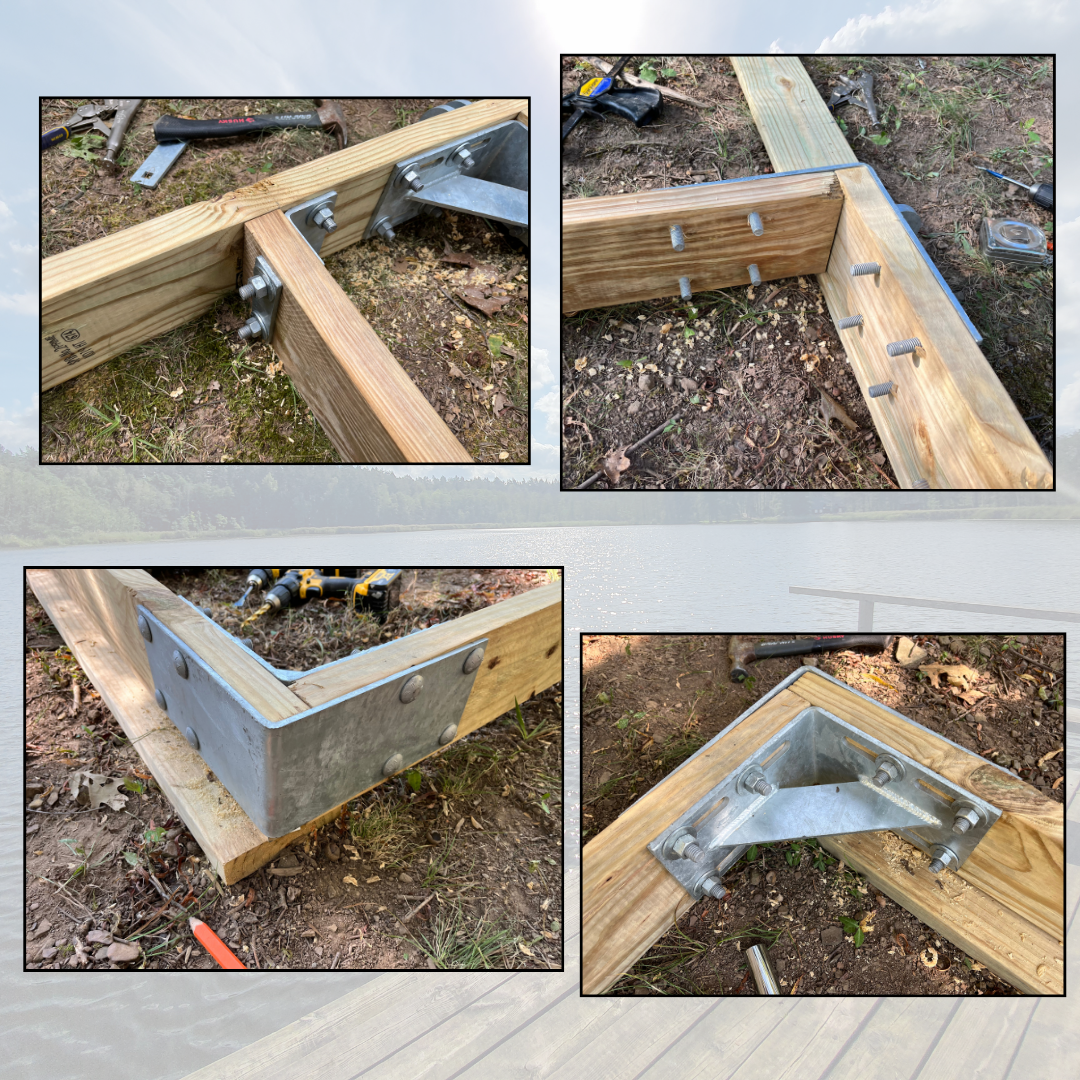

With lumber and hardware laid out, assembly becomes straightforward (and labour intensive). Place hardware, mark pilot holes, drill, and bolt securely.

Keep frames square and tightened securely.
Ensure top and bottom edges are flush to avoid issues attaching floats or decking.
Keep joist placement clear of planned connection points (backer plates need space).

Fast way to check square

Measure diagonals corner-to-corner. If both diagonals match, the frame is square.

Common mistakes to avoid

Not keeping joists and frame edges flush, causing float and decking issues
Placing joists where connection hardware needs to go

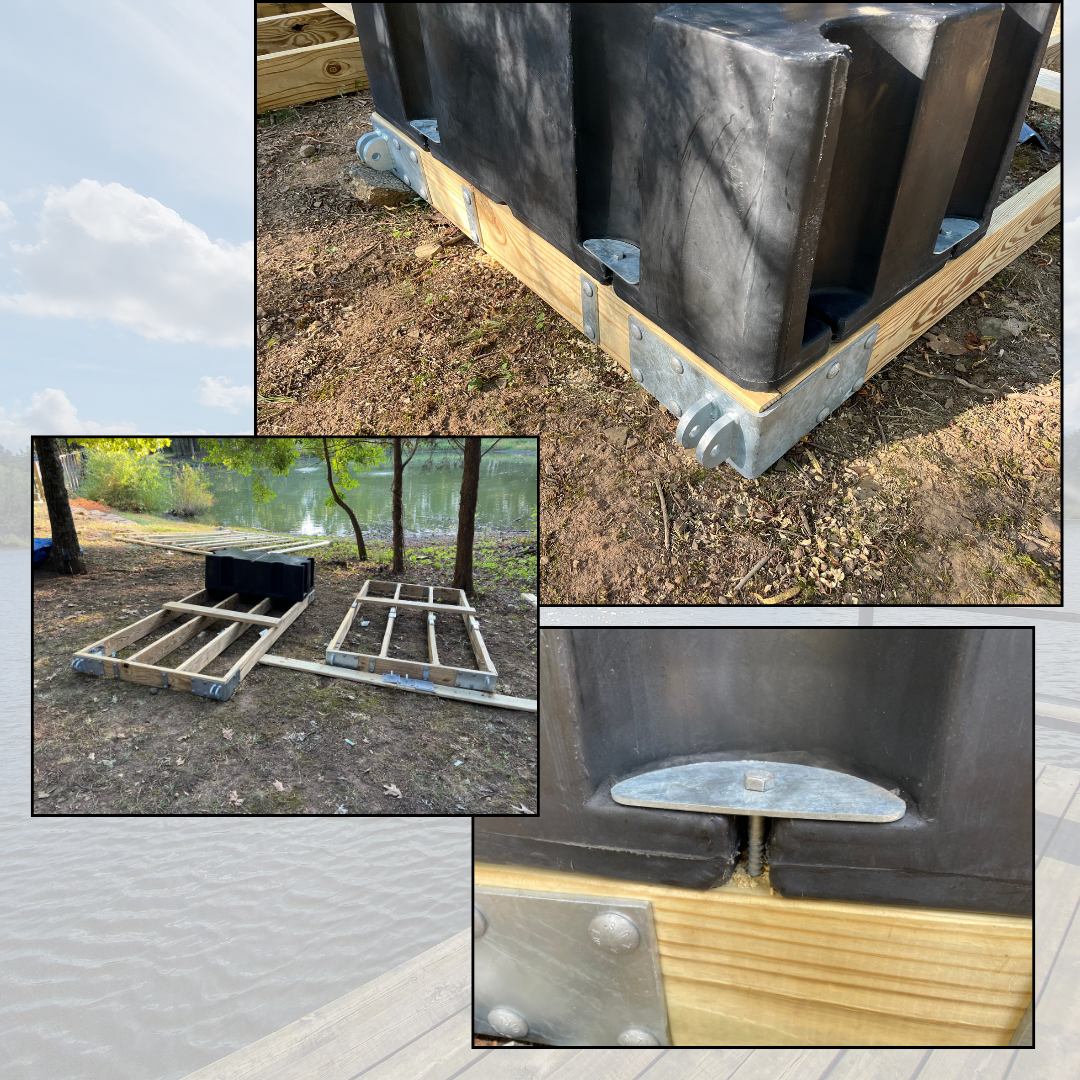

With the frame and joists complete, attach the floats using bolts and washers at multiple points, with a minimum of four attachment points per float.

Assembly approach: Smaller sections can sometimes be assembled upside down and flipped over before launch. Larger sections are usually too heavy to flip safely, so they should be assembled right side up and slid into the water.

For larger sections, elevate the frame so floats can be positioned underneath for attachment. Your floats can often help support the frame during this process.

Aim for even attachment

Attach floats symmetrically and use as many secure points as practical. More attachment points generally improves stability and reduces movement over time.

Common mistakes to avoid

Using too few attachment points per float
Attempting to flip a large section without adequate equipment and manpower

With floats secured and framing complete, add decking. Keep in mind that decking significantly increases module weight.

If you are concerned about moving the module into the water, decking can be added after the module is floating. Choose the approach that best fits your equipment and manpower.

Prevent splitting

Pre-drill where needed and use consistent spacing. Keeping your decking straight and evenly fastened improves strength and appearance.

Common mistakes to avoid

Decking everything on shore then realising the section is too heavy to launch safely
Ignoring joist spacing recommendations for the decking material

Installation

Launch modules, connect them, then anchor platform and shoreline securely.

Installation is where planning and modular design pay off. You’ll get each section into the water, connect modules, and anchor the system to minimise drift and movement.

Plan a “launch day”

Have all tools, fasteners, pins, and safety clips ready. Once modules are floating, small missing items can become big delays.

Common mistakes to avoid

Launching before connection hardware and pins are ready
Anchoring too lightly for the environment (wind, wakes, currents)

By now each module may weigh several hundred pounds. We recommend 4–8 people to assist with launching sections.

Slide modules into the water carefully and avoid putting undue strain on floats during launch.

Protect the floats

Move slowly and evenly. Sudden drops, twisting, or catching edges can stress floats and framing.

Common mistakes to avoid

Trying to launch with too few people
Dragging or dropping modules in a way that stresses the floats

Once modules are floating, connect them. You can connect as you launch each module, or connect everything once all modules are in position.

Align male and female connection points.
Slide the hitch pin through aligned holes.
Insert the safety clip to prevent the pin from sliding out.

It is normal to have a small amount of movement after connections are secured.

Pro tip on safety clips

The clip can be difficult to insert by design. If it won’t slide in at first, try flipping the pin direction or changing the angle slightly.

Related products and collections

1/2-13X3 Carriage Bolt Set

$2.44

Hardware

Collection

Bring waders if needed

You may need to step into the water to position connectors precisely. Planning for that ahead of time makes the process much smoother.

Common mistakes to avoid

Forgetting the safety clip
Trying to force alignment without repositioning the module

Anchoring is the final step. You’ll typically anchor both:

The main platform to the bottom of the pond or lake
The walkway to an anchor point on shore

The weight and number of anchors depends on conditions such as wakes, currents, tides, crosswinds, and seasonal storms. Many low-activity ponds and lakes can use basic concrete block anchors for the platform and concrete-set posts on shore.

Anchoring the platform

To minimise drift, secure anchors at each corner. Drop anchors in a criss-cross pattern: attach at one corner, cross underneath, and secure to the opposite corner.

Anchoring to the shoreline

A reliable method is to set 4x6 posts in concrete. Aim for a hole depth of at least one-third of the post’s above-ground height for stability.

Keep posts level and oriented correctly. Their direction determines how your dock leaves the shore. Once set, attach your connection points to the posts and connect the walkway.

Anchor for worst day, not best day

Anchoring that feels “fine” on a calm day may not be enough under wind, wakes, or storms. If you’re unsure, overbuild your anchoring plan.

Common mistakes to avoid

Anchoring only one side of the platform and allowing rotation
Setting shoreline posts out of alignment, forcing the dock off-angle

Conclusion

Your dock will “settle in” during the first few days as connections seat, anchors tension, and hardware beds into the framing. These quick checks help prevent small issues becoming bigger ones.

After 24–72 hours

Re-check hardware tightness: go around the dock and tighten key bolts (especially corners, joist brackets, and connection points).
Inspect float attachment points: confirm bolts/lag bolts and washers are seated and secure.
Check alignment: ensure walkway sections and the platform are still sitting square and connecting smoothly.

After the first windy day or heavy use

Inspect anchors: confirm nothing has shifted and the dock is not rotating or drifting.
Check lines/chain wear: look for rubbing points that could fray or loosen over time.
Confirm pins and safety clips: make sure connection pins are fully seated and clips are in place.

Occasional seasonal check

Decking: check for loose boards or raised fasteners.
Hardware corrosion: replace anything showing significant rust or wear.
Anchoring plan: re-evaluate if your conditions change (storms, higher wakes, seasonal wind patterns).

If something feels “off”

If the dock feels unusually low, wobbly, or rotated out of position, stop and diagnose before continuing heavy use. A quick adjustment to anchoring or attachment points is often all that’s needed.

Common mistakes to avoid

Assuming the dock is “done” and never re-checking fasteners after the first few days
Letting anchor lines rub on sharp edges until they wear through
Missing a safety clip and discovering a pin has started to walk out over time

We hope this guide has helped you feel confident getting started. Every dock is different, but the planning and buoyancy principles above translate to a wide range of sizes and layouts.

If you have questions or feedback on this guide, please contact us. We’re happy to help via phone, email, or chat.

Note: The Dock Shop takes no responsibility for the integrity or warranty of docks built using this guide. Please review the disclaimer below.

Save your build notes

Keep a simple record of your final module dimensions, float sizes, and anchor setup. It makes future repairs, upgrades, or expansions much easier.

Glossary of Terms

Live load

Temporary or variable weight the dock must support, including people, equipment, and movable objects. This changes over time.

Float freeboard

The distance in inches from the top of a dock float to the waterline. Check freeboard for dead load and at target live load.

Freeboard (alternative definition)

Sometimes used to mean the distance from the top of decking to the waterline. This guide references float specifications, so we use float freeboard unless stated otherwise.

Max buoyancy

The weight in pounds a float can support when the top of the float is level with the water. It is rarely safe to load floats to max buoyancy.

Joist

The lumber spanning the middle of your dock that supports decking and helps attach floats and provide strength.

Stringer

A board placed perpendicular to joists to increase rigidity and strength, especially helpful on larger platforms.

Disclaimer

These instructions are provided without any warranties, guarantees, or representations of any kind, either express or implied. This includes accuracy, completeness, or suitability for any particular purpose.

It is the dock builder’s responsibility to ensure proper and safe installation, use, and maintenance of dock supplies, and to comply with all local, state, and federal regulations, building codes, and safety standards. We strongly recommend consulting with a qualified professional or engineer.

The Dock Shop and Ten Talents Trading LLC are not responsible for actions taken based on these instructions, with or without professional consultation. Ten Talents Trading LLC shall not be held liable for any direct, indirect, incidental, consequential, or punitive damages, including property damage, personal injury, or death.

By using these instructions, you assume all risks associated with installation and use, including risks of improper installation, failure of materials, and environmental factors. Users agree to indemnify, defend, and hold harmless Ten Talents Trading LLC from any claims, damages, losses, liabilities, and expenses (including reasonable attorney’s fees).
